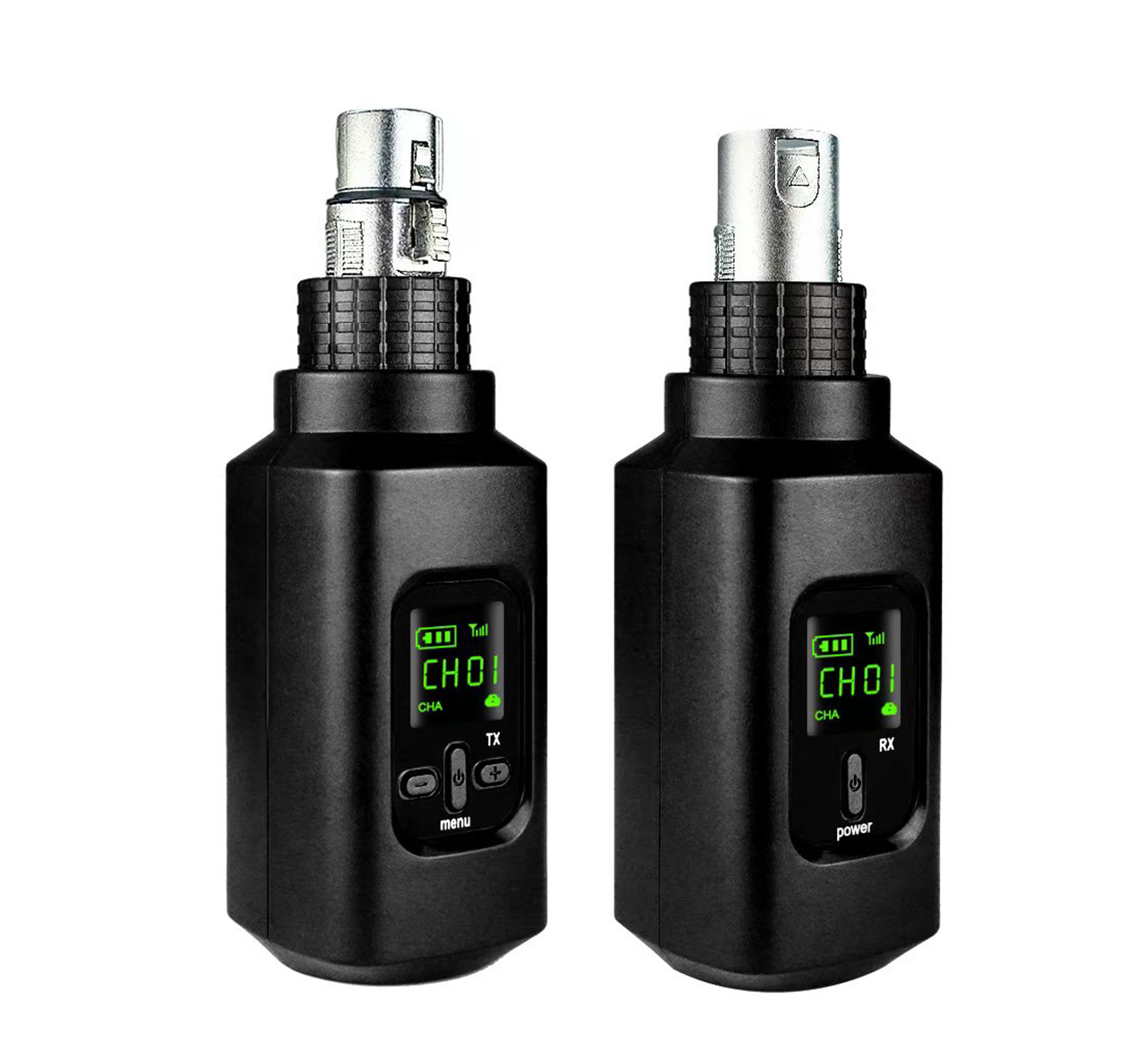

U180 – Digital Wireless Transmitter & Receiver

U180
U180

Overview

Move Freely, Speak Clearly

Introducing the new DYNApro U180 — a digital wireless transmitter and receiver system that delivers reliable performance and exceptional sound quality. Designed for live performances, public speaking, education, content creation, and professional audio applications, the U180 gives you the freedom to move without limits while keeping your voice crystal clear.

Genrall Specifications

DYNApro U180 – Advanced Digital Wireless System

The U180 is an advanced digital wireless system designed to deliver high-quality audio transmission without dropouts or interference. Operating in the 2.4 GHz frequency band — a globally accepted, license-free range — it ensures stable communication even in environments with potential signal interference. Its operating frequency spans from 2402 MHz to 2480 MHz, offering reliable connectivity for both public and professional use.

When it comes to sound quality, the U180 impresses with a dynamic range of over 90 dB, guaranteeing clear and detailed audio transmission. With a frequency response of 40 Hz to 18 kHz, it is well-suited for capturing the full spectrum of human voice, musical instruments, and other audio sources. A total harmonic distortion of less than 0.5% ensures the audio remains natural, clean, and uncolored.

One of the U180’s key advantages is its versatile power compatibility. Powered by 5V DC, it can be used with power banks, USB adapters, or portable batteries — making it a perfect choice for mobile and on-the-go applications.

In terms of environmental performance, the U180 is built to operate reliably in temperatures ranging from -10°C to +50°C. Whether you’re outdoors or in a studio, this system performs consistently in varying conditions.

With an operating range of over 20 meters, the U180 is ideal for classrooms, performance halls, meetings, video recording, podcasting, and other professional audio scenarios.

Technical Specifications


Feature

Value

Product Type

2.4GHz Digital Wireless Transmitter & Receiver

Frequency Range

2402 MHz to 2480 MHz

Dynamic Range

Over 90 dB

Audio Frequency Response

40 Hz to 18 kHz

Harmonic Distortion (THD)

Less than 0.5%

Operating Temperature

-10°C to +50°C

Input Voltage

5V DC

Operating Range

Over 20 meters
